Thiết bị kéo căng bulong Hi-Force STS2-150B1
• Giao hàng: 3-5 ngày nếu hàng có sẵn kho.
• Bảo hành: 12 tháng.
• Chứng chỉ: COO, CO, CQ.
• Hướng dẫn và chuyển giao công nghệ tại Kho khách hàng.

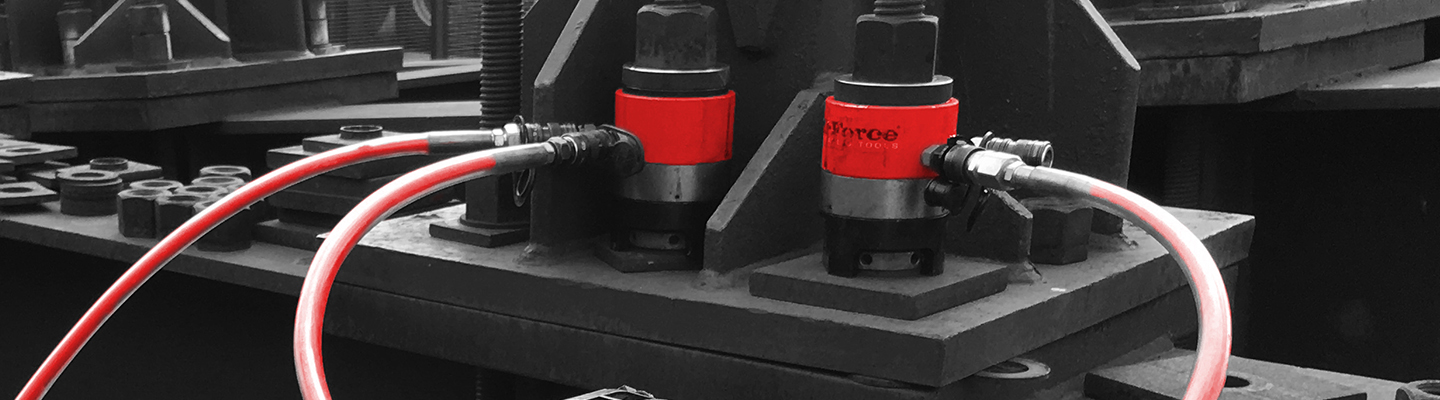

The STS imperial bolt tensioner range is designed for topside operation in a wide variety of applications including pipeline flanges, heat exchangers, pressure vessels, compressor covers, boiler feed pumps, anchor bolts and many others. The range comprises of 26 imperial size options ranging from ¾” to 4” thread size and all models are suitable for working pressures up to 1500 bar. Each model of hydraulic tensioning cylinder within the tensioner range can be operated with a variety of threaded pullers and nut rotating sockets ensuring that the maximum possible range of bolt sizes can be accommodated using the minimum number of hydraulic cylinders. Threaded pullers, bridges and nut rotating sockets are available as individual componentsAll Hi-Force hydraulic bolt tensioners are designed and manufactured to include a wear coated piston, maximum piston stroke indicator, self-energising high pressure seals, dual quick connect couplings for easy multiple tensioner connection and a user friendly operation and maintenance procedure.
- Capacities from 234 to 2649 kN
- Bolt sizes from ¾” to 4″
- Working pressure 1500 bar
- Single acting design with manual piston retraction
- High grade alloy steel construction
- Nitrocarburised piston
- Maximum piston stroke indicator
- Dual quick connect couplings for easy connection
- Designed to fit most sizes of ANSI and API flanges and some Compact flanges
- Interchangeable accessories to cover multiple stud bolt sizes using same tensioner
- Customised and special design tensioners are available on request
|
Conplete Tensioner |
Individual components |
D & E |
|||||
|
Model Number |
Bolt Thread |
A |
B Tommy bar |
C |
D |
E |
Complete conversion kit |
| For tensioner range STS1: | |||||||
|
STS1-075B1 |
¾” |
STS1-LC |
TTB06 |
STS1-B1 |
TP1-075B1 |
RS1-32B1 |
CK1-075B1 |
|
STS1-078B1 |
7/8” |
STS1-LC |
TTB06 |
STS1-B1 |
TP1-087B1 |
RS1-37B1 |
CK1-078B1 |
|
STS1-100B2 |
1” |
STS1-LC |
TTB06 |
STS1-B2 |
TP1-100B2 |
RS1-41B2 |
CK1-100B2 |
|
STS1-112B2 |
1 1/8” |
STS1-LC |
TTB06 |
STS1-B2 |
TP1-112B2 |
RS1-46B2 |
CK1-112B2 |
|
For tensioner range STS2: |
|||||||
|
STS2-125B1 |
1 ¼” |
STS2-LC |
TTB08 |
STS2-B1 |
TP2-125B1 |
RS2-51B1 |
CK2-125B1 |
|
STS2-137B1 |
1 3/8” |
STS2-LC |
TTB08 |
STS2-B1 |
TP2-137B1 |
RS2-56B1 |
CK2-137B1 |
|
STS2-150B1 |
1 ½” |
STS2-LC |
TTP08 |
STS2-B1 |
TP2-150B1 |
RS2-60B1 |
CK2-150B1 |
| For tensioner range STS3 | |||||||
|
STS3-162B1 |
1 5/8” |
STS3-LC |
TTB10 |
STS3-B1 |
TP3-162B1 |
RS3-65B1 |
CK3-162B1 |
|
STS3-175B1 |
1 ¾” |
STS3-LC |
TTB10 |
STS3-B1 |
TP3-175B1 |
RS3-70B1 |
CK3-175B1 |
|
STS3-187B1 |
1 7/8” |
STS3-LC |
TTB10 |
STS3-B1 |
TP3-178B1 |
RS3-75B1 |
CK3-187B1 |
|
STS3-175B2 |
1 ¾” |
STS3-LC |
TTB10 |
STS3-B2 |
TP3-175B2 |
RS3-70B2 |
CK3-175B2 |
|
STS3-187B2 |
1 7/8” |
STS3-LC |
TTB10 |
STS3-B2 |
TP3-200B2 |
RS3-72B2 |
CK3-187B2 |
|
STS-200B2 |
2” |
STS3-LC |
TTB10 |
STS3-B2 |
TP3-187B2 |
RS3-80B2 |
CK3-200B2 |
| For tensioner range STS4: | |||||||
|
STS4-187B1 |
1 7/8” |
STS3-LC |
TTB14 |
STS4-B1 |
TP4-187B1 |
RS4-75B1 |
CK4-187B1 |
|
STS4-200B1 |
2” |
STS4-LC |
TTB14 |
STS4-B1 |
TP4-200B1 |
RS4-80B1 |
CK4-200B1 |
|
STS4-200B2 |
2” |
STS4-LC |
TTB14 |
STS4-B2 |
TP4-200B2 |
RS4-80B2 |
CK4-200B2 |
|
STS4-22B2 |
2 ¼” |
STS4-LC |
TTB14 |
STS4-B2 |
TP4-225B2 |
RS4-90B2 |
CK4-225B2 |
|
STS4-250B2 |
2 ½” |
STS4-LC |
TTB14 |
STS4-B2 |
TP4-250B2 |
RS4-98B2 |
CK4-250B2 |
| For tensioner range STS5: | |||||||
|
STS5-250B1 |
2 ½” |
STS5-LC |
TTB14 |
STS5-B1 |
TP5-250B1 |
RS5-100B1 |
CK5-250B1 |
|
STS5-275B1 |
2 ¾” |
ST5-LC |
TTB14 |
STS5-B1 |
TP5-275B1 |
RS5-108B1 |
CK5-275B1 |
|
STS5-300B1 |
3” |
STS5-LC |
TTB14 |
STS5-B1 |
TP5-300B1 |
RS5-118B1 |
CK5-300B1 |
| For tensioner range STS6 | |||||||
|
STS6-300B1 |
3” |
STS6-LC |
TTB14 |
STS6-B1 |
TP6-300B1 |
RS6-118B1 |
CK6-300B1 |
|
STS6-325B1 |
3 ¼” |
STS6-LC |
TTB14 |
STS6-B1 |
TP6-325B1 |
RS6-127B1 |
CK6-325B1 |
|
STS6-350B1 |
3 ½” |
STS6-LC |
TTB14 |
STS6-B1 |
TP6-350B1 |
RS6-137B1 |
CK6-350B1 |
|
STS6-175B3 |
3 ¾” |
STS6-LC |
TTB14 |
STS6-B3 |
TP6-375B3 |
RS6-146B3 |
CK6-375B3 |
|
STS6-400B3 |
4” |
STS6-LC |
TTB14 |
STS6-B3 |
TP6-400B3 |
RS6-156B3 |
CK6-400B3 |

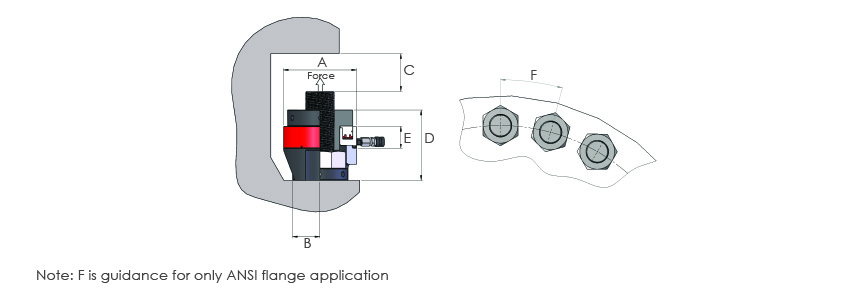

| Dimensions in mm | ||||||
|
Model Number |
A |
B |
C min |
D |
E |
F |
|
STS1-075B1 |
74 |
28 |
74 |
90 |
45 |
51 |
|
STS1-078B1 |
74 |
28 |
74 |
90 |
45 |
54 |
|
STS1-100B2 |
74 |
30 |
80 |
98 |
45 |
61 |
|
STS1-112B2 |
74 |
30 |
80 |
98 |
45 |
64 |
|
STS2-125B1 |
102 |
39 |
103 |
128 |
54 |
74 |
|
STS2-137B1 |
102 |
39 |
103 |
128 |
54 |
77 |
|
STS2-150B1 |
102 |
39 |
103 |
128 |
54 |
80 |
|
STS2-162B1 |
133 |
47 |
115 |
150 |
56 |
92 |
|
STS2-175B1 |
133 |
47 |
115 |
150 |
56 |
93 |
|
STS2-175B2 |
133 |
50 |
117 |
155 |
56 |
104 |
|
STS3-187B1 |
133 |
47 |
115 |
150 |
56 |
97 |
|
STS3-187B2 |
133 |
50 |
117 |
155 |
56 |
104 |
|
STS3-200B2 |
133 |
50 |
117 |
155 |
56 |
104 |
|
STS4-187B1 |
163 |
50 |
119 |
149 |
57 |
104 |
|
STS4-200B1 |
163 |
50 |
119 |
149 |
57 |
104 |
|
STS4-200B2 |
163 |
62 |
119 |
149 |
57 |
106 |
|
STS4-225B2 |
163 |
62 |
135 |
165 |
57 |
121 |
|
STS4-250B2 |
163 |
62 |
135 |
165 |
57 |
127 |
|
STS5-250B1 |
193 |
73 |
145 |
187 |
60 |
134 |
|
STS5-275B1 |
193 |
73 |
145 |
187 |
60 |
140 |
|
STS5-300B1 |
193 |
73 |
145 |
187 |
60 |
147 |
|
STS6-300B1 |
233 |
84 |
178 |
216 |
64 |
161 |
|
STS6-325B1 |
233 |
84 |
178 |
216 |
64 |
167 |
|
STS6-350B1 |
233 |
84 |
178 |
216 |
64 |
172 |
|
STS6-375B3 |
233 |
105 |
205 |
257 |
64 |
191 |
|
STS6-400B3 |
233 |
105 |
205 |
257 |
64 |
196 |
